Technical Specification

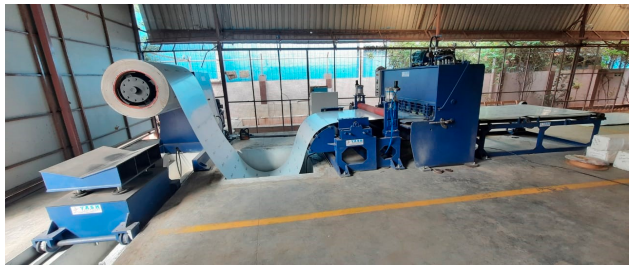

| Machine Type | 0.3 TO 0.8 Fully Auto Cut To Length Line Machine |
|---|---|
| Material | CR/GP/PPGI/SS/PPGL |
| Coil Thickness | 0.3MM TO 0.8 MM |
| Width | 1250 MM |
| Coil weight | 0.3 TO 15 TON |
| Line speed | 15 MPM |

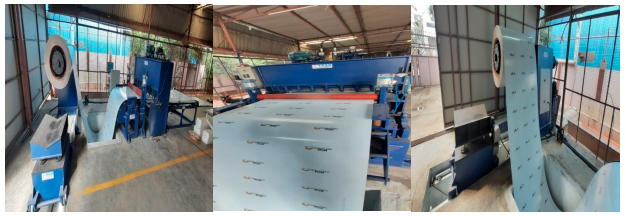

| TOTAL UNIT IN THIS LINE | (1) Expand collapse Decoiler With coil Car (2) Servo Feeder (3) Hydraulic Shearing Machine (4) Plate Out Put Conveyor |
Standard Features :-
- Decoiler From our Standard Range.
- Servo Feeder From Our Standard Range.
- Shear (Pneumatic /Hydraulic / Mechanical /Servo)

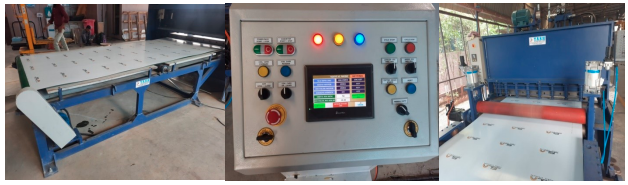

- Electrical Control Panel With All Automation
- Power Pack 3 hp Standard Make
- Conveyor
