Technical Specification
| Material | HR/SS/MS |
| Coil Thickness | 1.6mm to 12mm |
| Width | 900mm to 2500mm |
| Coil weight | 30 to 40 ton |
| Line speed | 15 MPM |

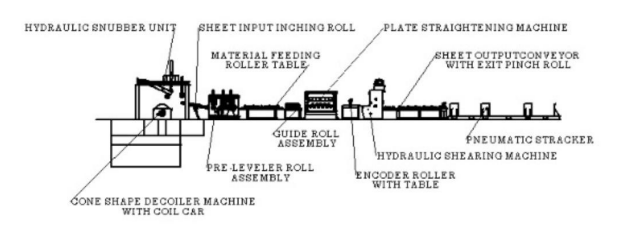

| Total Unit In This Line | 1. Cone Shape Decoiler With coil Car 2. Hydraulic Snubber Unit 3. Sheet Input Inching Roll 4. Pre Leveler Roll Assembly 5. Material Feeding Roller Table 6. Guide Roll Assembly 7. Plate Straightening Machine 8. Encoder Roller Table 9. Hydraulic Shearing Machine 10. Sheet Output Conveyor With Exit Pinch Roll 11. Pneumatic Stacker |
Features
- Low Maintenance
- Length Measurement In Servo Motor
- Roll Pressure Adjustment System in Auto
- Shearing machine available both type. (Pneumatic Clutch operated & hydraulically operated)
- Straightener/Leveller machine rollers are made by alloy steels
- Driven by gears/auxiliary gear box.
- Line Speed from 15 MPM
- Encoder with PLC Control base line
- Back Tray, Motorised conveyor or hydraulic stacker.
