Technical Specification
| Machine Type | Manual HR CTL Line |
|---|---|
| Material | MS/HR/CR/GP/SS/Colour Coated Sheet /A luminium |
| Sheet Thickness | 0.3 to 5 mm |
| Line Speed | 50 To 70 MPM |
| Coil Weight | 10 Ton to 30 Ton |
| Coil Width | 600 to 2500 mm |
| Finish Strip Width | 25 to 350 mm |

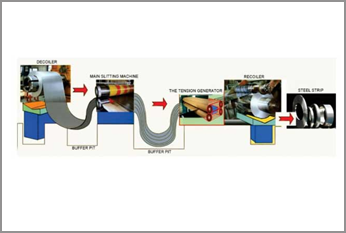

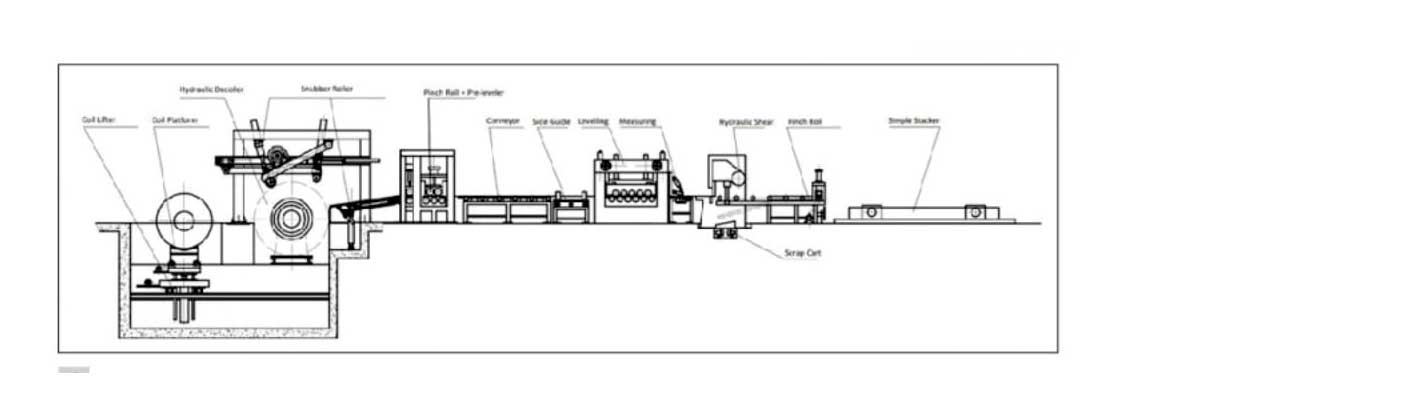

| Total Unit In Slitting Line | (1) Snubber (for CoilFeed) (2) Hydraulic Decoiler with Lifter (3) Sheet Supporter (4) Pressure Head (5) Sheet Leveler (6)Slitting Head with Arbor Shaft (7) Looping System (8) Pressure Head (9) Streep Seprater Unit (10) Sheet Supporter (11) Recoiler with Over Arm (12) Shearing Machine (13) Scrap Winder |
Features
- Length Measurement In Servo Motor
- Roll Pressure Adjustment System in Auto
- Coil Lifter or Coil Car Facility Available
- Sheet Stacking Unit
