Technical Specification
| Machine Type | Mechanical & Hydraulic Manual CTL Line |
|---|---|
| Material | "MS/HR/CR/GP/SS/Colour Coated/Brass & Copper /Aluminium" |
| Sheet Thickness | Min. 0.3 mm To 6 mm |
| Coil Weight | 3 Ton To 30 Ton |
| Line Speed l | O To 30 MPM |
| Coil Width | Min. 600 To 2500 mm |

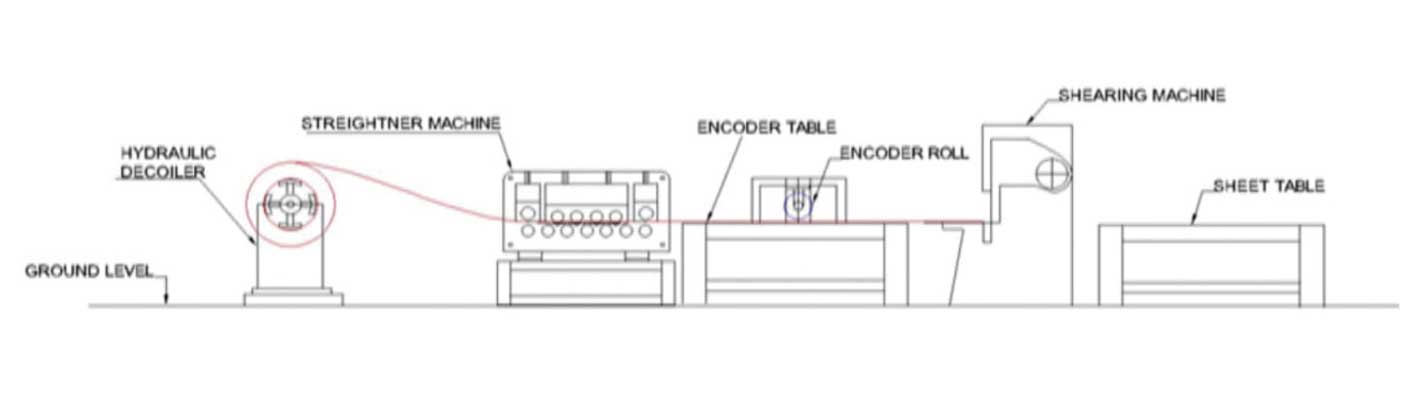

| Total Unit In CTL Line | (1) Hydraulic Decoller (2)Straightening Machine (3)Between Table (4) Shearing Machine (5)Sheet Stopper Table |
Features
- Superior Performance
- Hight Efficiency
- Low Maintenance
